TechDraw AI
Turn any photo or sketch into a technical drawing

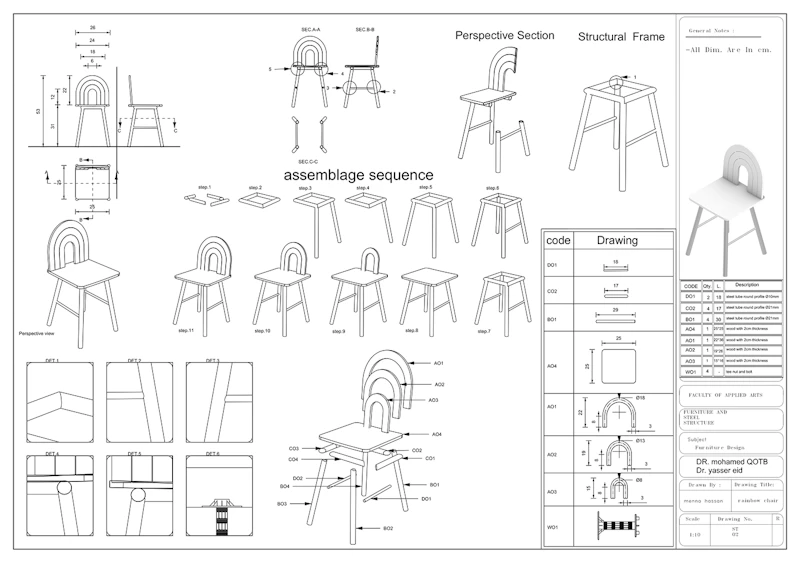

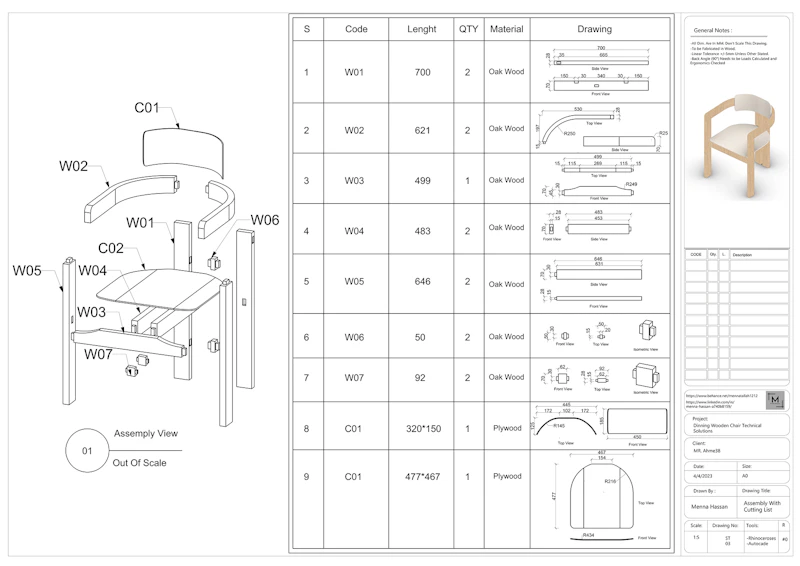

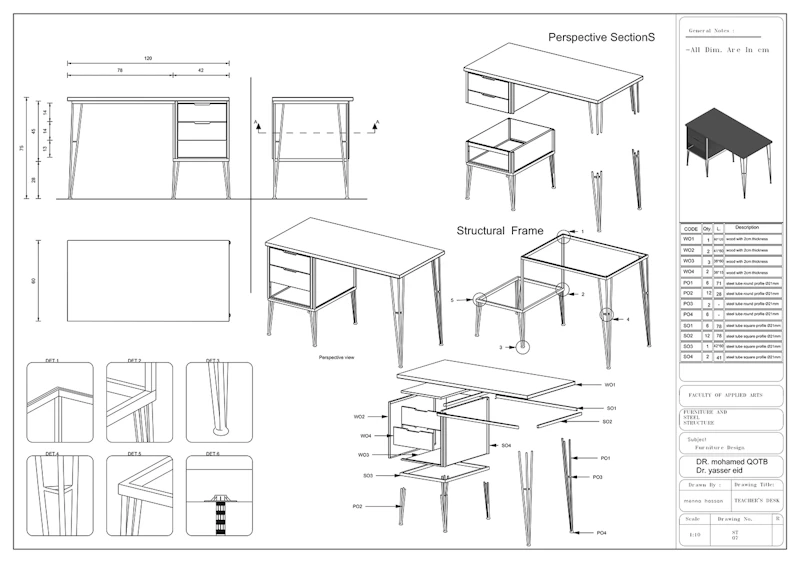

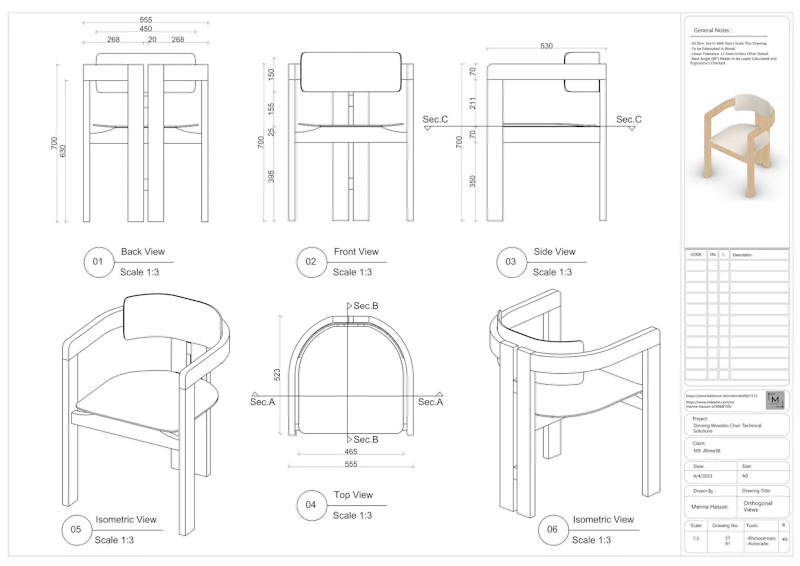

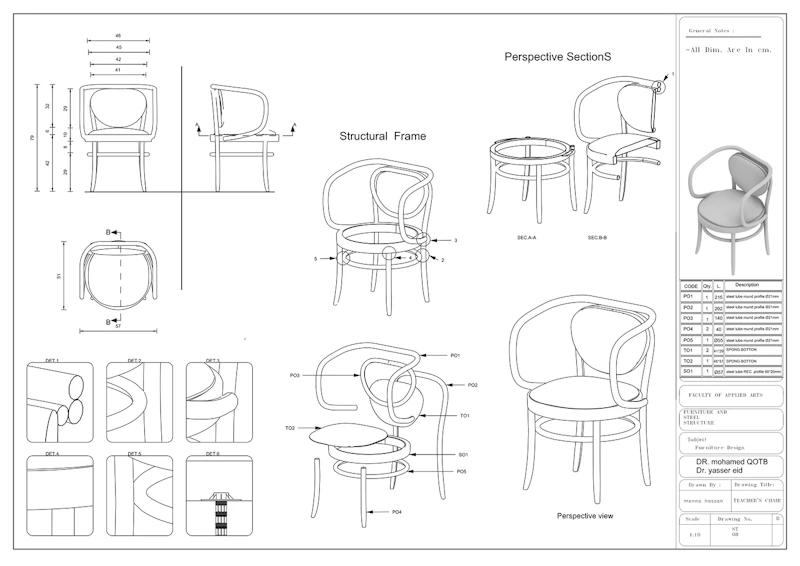

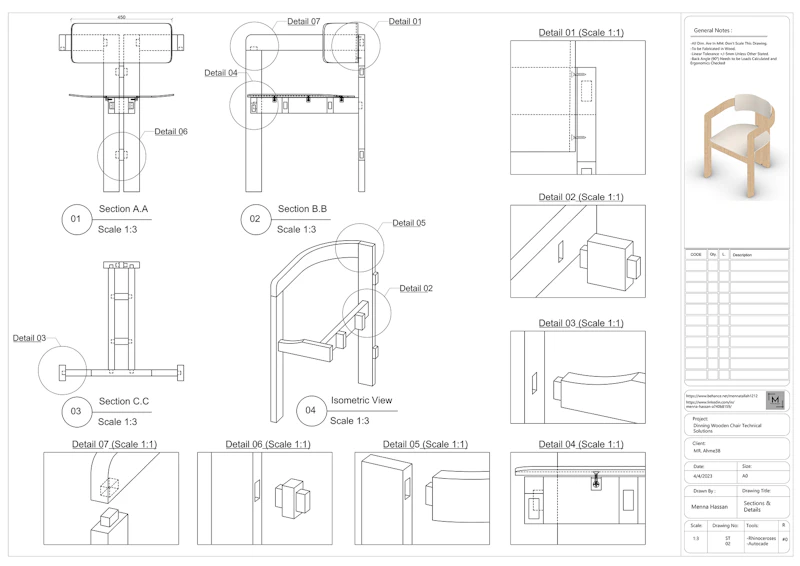

TechDraw AI turns a photo, sketch or prompt into a clean, dimensioned, standards-compliant technical drawing in seconds — no CAD skills needed. Unlike general image generators, every dimension is tied to the real measurements you set, not guessed from pixels. You get proper orthographic views, ISO/ANSI/DIN title blocks and GD&T symbols, plus an auto-generated BOM. Export to DXF, DWG, SVG or PDF, ready for AutoCAD, Fusion, SolidWorks and CNC/laser machines.
Hey Product Hunt! 👋
I built TechDraw AI because turning a real-world part into a proper technical drawing still meant hours in CAD or hiring a drafter, even for simple things.
So we made it dead simple: upload a photo or sketch, set the real measurements, and get back a fully dimensioned, standards-compliant drawing you can export to DXF, DWG, SVG or PDF. The key difference vs. AI image tools is that every dimension is anchored to YOUR measurements, so a workshop can actually machine from it.
Free to start, no credit card, no CAD license.
Would love your feedback, especially from engineers, fabricators and woodworkers. What would make this a daily tool for you?
